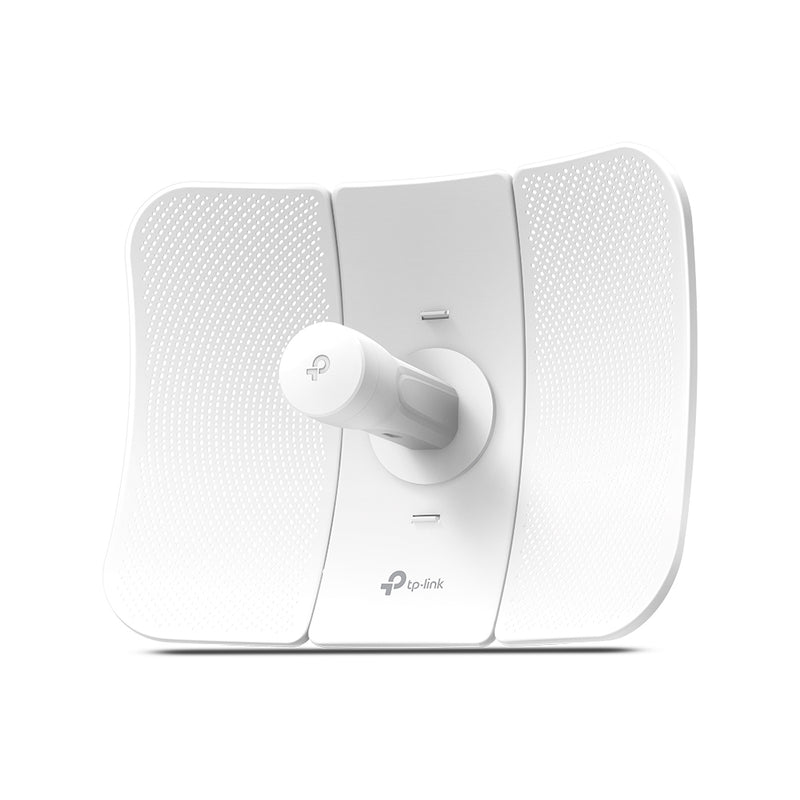

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE

The TP-Link CPE610 is a 5GHz 300Mbps outdoor CPE designed for long-distance point-to-point and point-to-multipoint wireless networking. It combines a powerful 23dBi high-gain directional 2×2 MIMO antenna, Passive PoE, TP-Link Pharos management and MAXtream TDMA technology in a rugged IP65-rated outdoor enclosure.

TP-Link positions the CPE610 for long-distance wireless transmission of up to 30km under suitable conditions on regional product pages. Its narrow directional beam, large reflector and high antenna gain make it particularly suitable for connecting buildings, farms, CCTV sites, schools, warehouses, remote offices and other locations where laying fibre would be difficult or expensive.

The CPE610 provides up to 300Mbps theoretical wireless speed on 5GHz but uses a 10/100Mbps Fast Ethernet port, which is an important consideration for modern Starlink and high-speed fibre deployments. The US product page currently marks the CPE610 as End of Life, although TP-Link notes that model and hardware-version availability varies by region, and the device remains listed by Kenyan retailers.

TP-Link CPE610 Key Features

TP-Link’s current product specifications confirm the 23dBi antenna, 300Mbps N300 radio, Fast Ethernet interface, Passive PoE, MAXtream, IP65 enclosure and outdoor-protection features.

5GHz 300Mbps Wireless

The TP-Link CPE610 operates in the 5GHz band using IEEE 802.11a/n.

Its theoretical wireless rates vary according to channel width:

This flexibility allows installers to choose between maximum theoretical capacity and narrower channels that may perform better in congested environments.

The 300Mbps figure is the radio PHY rate, not guaranteed usable internet throughput. Real-world speeds depend on interference, distance, channel width, antenna alignment, network traffic and the Fast Ethernet interface.

Powerful 23dBi Directional Antenna

A major advantage of the CPE610 is its 23dBi high-gain directional 2×2 MIMO antenna.

Compared with the smaller CPE510, which uses a 13dBi directional antenna, the CPE610 provides considerably stronger directional gain for long-distance links.

TP-Link specifies a narrow antenna beam of approximately:

• 9° azimuth

• 7° elevation

This narrow beam helps focus radio energy toward the remote site while reducing unwanted interference from other directions.

The antenna also incorporates a dedicated metal reflector designed to improve beam directivity and noise rejection.

Long-Distance Wireless Up to 30km

TP-Link regional documentation positions the CPE610 for long-distance wireless transmission up to approximately 30km under suitable conditions.

That figure should not be interpreted as a guaranteed installation distance.

A reliable 30km link requires careful planning around:

A poorly aligned 2km link can perform worse than a professionally designed 15km link.

Excellent Beam Directivity

The CPE610’s high-gain reflector creates a much narrower signal pattern than lower-gain CPE radios.

This provides several benefits:

• Less interference from unwanted directions

• Better signal concentration

• Improved long-distance link budget

• More predictable directional coverage

• Better performance between two fixed sites

TP-Link specifically promotes the CPE610 for excellent beam directivity, improved latency and noise cancellation.

TP-Link CPE610 for Point-to-Point Wireless

A pair of CPE610 units can create a dedicated wireless bridge between two locations.

Typical Point-to-Point Layout

Main Site → CPE610 )))))) CPE610 → Remote Site

For example:

Starlink / Fibre → Router → CPE610 )))))) CPE610 → Switch → Access Point

The two CPE radios are mounted at opposite sites and aligned directly toward each other.

How Many CPE610 Units Do You Need?

For a conventional point-to-point bridge:

A single CPE610 normally does not create a full PtP bridge unless compatible equipment already exists at the opposite end.

TP-Link CPE610 for Point-to-Multipoint

The CPE610 also supports TP-Link’s Pharos outdoor networking architecture and MAXtream TDMA.

In compatible point-to-multipoint networks, a central AP can communicate with multiple remote client stations.

Example:

Main Site → Client A
Main Site → Client B
Main Site → Client C

Applications include:

• Farms

• Schools

• Business campuses

• CCTV networks

• Housing compounds

• WISP networks

• Industrial sites

MAXtream is designed to improve capacity, throughput and latency in compatible Pharos PtMP environments.

Pharos MAXtream TDMA

Conventional wireless networks can suffer from hidden-node problems when multiple outdoor clients are communicating with a central AP.

TP-Link’s MAXtream TDMA technology assigns transmission opportunities more systematically, helping compatible Pharos networks improve:

• Throughput

• Airtime efficiency

• Capacity

• Latency

• Multi-client scalability

This is particularly useful in WISP and multi-building installations.

Pharos Control Centralized Management

The CPE610 supports Pharos Control, TP-Link’s centralized management application for compatible Pharos devices.

Administrators can use it for:

• Device discovery

• Status monitoring

• Firmware upgrades

• Network maintenance

• Centralized configuration

TP-Link’s current support page lists Pharos Control 2.0.8, published in August 2025, for Windows, macOS and Linux.

PharOS Web Management

The CPE610 also provides TP-Link’s PharOS web interface.

Management and diagnostic capabilities include:

• Signal-strength monitoring

• Noise monitoring

• Transmit CCQ

• CPU and memory status

• Throughput monitoring

• Station monitoring

• Spectrum Analyzer

• Speed Test

• Ping

• Traceroute

• SSH

• SNMP

• Ping Watchdog

• System logs

These tools are especially useful during long-distance alignment and troubleshooting.

10/100Mbps Fast Ethernet Port

One of the most important specifications to understand before buying the CPE610 is its Ethernet interface.

TP-Link specifies:

1 × 10/100Mbps shielded Ethernet port for LAN/PoE.

This means that although the radio link is theoretically rated at up to 300Mbps, the wired interface can become the practical bottleneck.

Speed Consideration

For modern high-speed Starlink or fibre links, this limitation is particularly important.

CPE610 for Starlink

The TP-Link CPE610 can be used to extend Starlink internet from one building to another over long distances.

A typical deployment would be:

Starlink → Router → CPE610 )))))) CPE610 → Remote Router / AP

This may be useful for:

• Remote offices

• Guest houses

• Farms

• Staff quarters

• Gatehouses

• Warehouses

• Schools

• CCTV sites

• Lodges

• Construction sites

Its 23dBi directional antenna gives it much greater long-range capability than entry-level CPE models.

However, because the CPE610 uses Fast Ethernet, it will not transport the full capacity of a Starlink connection delivering well above 100Mbps.

For those installations, a Gigabit-equipped outdoor bridge is preferable.

CPE610 for CCTV

The CPE610 can provide long-distance IP CCTV backhaul.

Example:

Remote CCTV Cameras → PoE Switch → CPE610 )))))) CPE610 → Main Network → NVR

This can be useful where cameras are installed:

• At a distant gate

• On a farm

• At a perimeter fence

• In a remote warehouse

• At construction sites

• At remote compounds

The total camera bitrate should always be calculated before installation to make sure it fits within the practical throughput of the bridge.

CPE610 for Farms

Large farms can use CPE610 radios to link:

• Farmhouse

• Main office

• Staff housing

• Security gates

• Greenhouses

• Dairy facilities

• Irrigation sites

• CCTV locations

• Workshops

The narrow 23dBi directional beam makes the CPE610 particularly useful when buildings are separated by several kilometres.

CPE610 for Schools and Campuses

Educational institutions can deploy CPE610 links between:

• Administration block

• Computer lab

• Library

• Dormitories

• Security gate

• Staff housing

• Remote classroom blocks

A properly designed PtP link can carry internet and internal LAN traffic without trenching fibre between buildings.

CPE610 for Warehouses and Industrial Sites

The CPE610 can also connect geographically separated industrial buildings.

Possible traffic includes:

• Internet

• CCTV

• VoIP

• ERP terminals

• Access control

• Printers

• Staff networks

• Remote monitoring systems

For bandwidth-intensive enterprise traffic above 100Mbps, however, the Fast Ethernet interface should be treated as a major limitation.

Passive PoE

The CPE610 supports Passive Power over Ethernet.

TP-Link specifies a voltage range of approximately 16–27V DC, with the referenced adapter providing 24V DC at up to 0.5A.

Typical installation:

Router/Switch → Passive PoE Adapter → Ethernet Cable → CPE610

The same Ethernet cable carries both network data and power to the radio.

Up to 60m Passive PoE Cable Run

TP-Link lists Passive PoE support for cable lengths of up to approximately 60 metres / 200 feet.

This allows the radio to be positioned high on:

• Rooftops

• Masts

• Towers

• Poles

• Exterior walls

without installing a mains outlet directly beside the CPE.

Always use the correct PoE adapter for the exact hardware version.

IP65 Weather Protection

The CPE610 is designed for outdoor deployment and carries an IP65 weatherproof rating on current referenced regional specifications.

IP65 indicates protection against dust ingress and water jets, making the radio suitable for exposed outdoor locations when installed correctly.

It should still be fitted with proper:

• Outdoor-rated Ethernet cable

• Grounding

• Surge protection

• Weather-resistant connections

• Secure mounting

15kV ESD and 6kV Lightning Protection

TP-Link specifies:

• 15kV ESD protection

• 6kV lightning protection

for the CPE610.

These features improve outdoor durability, but they are not a substitute for proper grounding and lightning-protection practices.

Wind-Resistant Structural Design

The CPE610 uses a large directional reflector, but TP-Link designed the housing and mounting system for stability in outdoor deployments.

The manufacturer highlights:

• Snap-lock assembly

• Sturdy structural design

• Wind-resistant construction

• Adjustable mounting

These features make installation easier while helping keep antenna alignment stable.

Maintaining alignment is especially important because the CPE610 has a narrow beam.

Line of Sight Is Critical

For long-distance CPE610 links, clear line of sight is essential.

The antennas should ideally have an unobstructed path without:

• Trees

• Buildings

• Hills

• Large metal structures

• Other significant obstacles

Good visual line of sight alone is not enough for very long links.

The Fresnel zone also needs adequate clearance.

Poor Fresnel clearance can cause:

• Packet loss

• Signal fading

• Reduced throughput

• Higher latency

• Intermittent link drops

Professional site surveys are recommended for long-distance installations.

Antenna Alignment

The CPE610’s 9° × 7° beam is much narrower than lower-gain CPE radios.

This improves directional performance but makes alignment more demanding.

Installers should monitor:

• RSSI / signal strength

• Noise

• SNR

• Transmit CCQ

• Throughput

• Channel utilization

A small pointing error can significantly reduce signal quality on a very long link.

CPE610 vs CPE510

The CPE610’s biggest advantage over the CPE510 is antenna gain and directional range, not Ethernet or wireless PHY speed.

CPE610 vs CPE710

The two models share high-gain directional antenna positioning, but the CPE710 offers a much faster 802.11ac radio at up to 867Mbps.

For a new project where throughput matters, the CPE710 is generally the stronger option.

CPE610 vs CPE210

The CPE610 is designed for significantly more directional long-distance work.

Advantages and Limitations

TP-Link CPE610 Price in Kenya

Current Kenyan listings vary considerably by seller.

A TDK Kenya listing indexed today shows the TP-Link CPE610 at KES 8,500 excluding VAT, reduced from KES 9,500.

Jumia Kenya currently shows CPE610 listings ranging from around KES 9,000 to KES 24,800, illustrating how much seller pricing can vary.

These are market-reference prices, not a fixed Orbitlink Solutions selling price.

For the Orbitlink website, use:

Price: Contact Orbitlink Solutions for the current TP-Link CPE610 price in Kenya and availability.

Who Should Buy the TP-Link CPE610?

The CPE610 is best suited to projects where distance is more important than very high throughput.

It is particularly appropriate for:

• Long-distance building-to-building links

• Farms

• Schools

• CCTV backhaul

• Warehouses

• Remote offices

• Construction projects

• WISP installations

• Lodges and camps

• Long-range Starlink extensions

• Point-to-multipoint systems

If your application requires more than approximately Fast Ethernet-class throughput, compare the CPE710 or newer Gigabit-capable outdoor radios before purchase.

What Is Included with the TP-Link CPE610?

TP-Link lists the package contents as:

Detailed TP-Link CPE610 Specifications

Specifications and regulatory settings can vary by hardware revision and region, so confirm the label on the exact unit before firmware updates or PoE replacement. TP-Link currently lists V1, V2 and V2.40 support branches on its US support page.

Why Buy TP-Link CPE610 from Orbitlink Solutions?

Orbitlink Solutions can also help customers compare the CPE210, CPE510, CPE610 and CPE710 according to distance, throughput, interference and budget.

Watch: TP-Link CPE610 Setup and Installation

The TP-Link CPE610 is designed for users who need a highly directional 5GHz outdoor bridge rather than general Wi-Fi coverage. Its 23dBi antenna and narrow 9° × 7° beam allow the radio to concentrate energy between two fixed sites, making it suitable for long-distance links where accurate alignment and clear line of sight can be achieved. TP-Link regional pages position the system for distances of up to about 30km under appropriate conditions.

For a standard point-to-point installation, two CPE610 units are normally used, with one installed at the source network and the other at the remote location. Passive PoE simplifies mast installation, while PharOS and Pharos Control provide monitoring, alignment and management tools. MAXtream TDMA can also improve compatible point-to-multipoint deployments.

The main consideration for modern installations is the 10/100Mbps Ethernet port. The CPE610 provides excellent long-range directional capability, but it is not the ideal platform if the goal is to transport the full capacity of a high-speed Starlink or fibre connection above 100Mbps. For higher-throughput projects, the CPE710 or a newer Gigabit outdoor wireless platform should be compared before deployment.

Frequently Asked Questions About TP-Link CPE610

What is the TP-Link CPE610?

The CPE610 is a 5GHz 300Mbps outdoor CPE with a 23dBi directional 2×2 MIMO antenna designed for long-distance outdoor wireless links.

How fast is the CPE610?

It provides a theoretical maximum radio rate of 300Mbps using a 40MHz channel.

What frequency does CPE610 use?

It operates in the 5GHz band, with specific available frequencies depending on regulatory region.

What antenna does the CPE610 have?

It uses a 23dBi high-gain directional 2×2 MIMO antenna with a dedicated metal reflector.

What is the maximum range of TP-Link CPE610?

Some TP-Link regional pages position the CPE610 for outdoor wireless transmission of up to approximately 30km under suitable conditions. Actual distance depends on line of sight, Fresnel clearance, interference and alignment.

Does CPE610 have Gigabit Ethernet?

No. It uses a 10/100Mbps Fast Ethernet port.

Can CPE610 provide 300Mbps internet?

Not through its Fast Ethernet interface. The 300Mbps figure is the theoretical wireless PHY rate, while the wired interface is nominally limited to 100Mbps.

Does CPE610 support Passive PoE?

Yes. TP-Link specifies 16–27V Passive PoE, with a 24V adapter supplied on the referenced model.

How far can the PoE cable run?

TP-Link specifies Passive PoE operation up to approximately 60 metres / 200 feet.

Is CPE610 weatherproof?

Yes. Current referenced regional specifications list an IP65 water- and dust-resistant enclosure.

Does it have lightning protection?

Yes. TP-Link lists 6kV lightning protection and 15kV ESD protection.

Can CPE610 connect two buildings?

Yes. Two compatible CPE610 radios can create a long-distance point-to-point wireless bridge.

Can CPE610 work with Starlink?

Yes. It can extend Starlink to a remote building, but its Fast Ethernet port may limit throughput on faster Starlink connections.

Can CPE610 carry CCTV traffic?

Yes. It is suitable for long-distance CCTV backhaul where the total camera bitrate remains within the practical capacity of the link.

Does CPE610 support point-to-multipoint?

Yes. It supports the Pharos platform and MAXtream TDMA technology for compatible outdoor PtMP deployments.

Is CPE610 better than CPE510?

For very long-distance directional links, generally yes. Both are 300Mbps 5GHz 802.11n devices, but the CPE610 uses a 23dBi antenna versus 13dBi on the CPE510.

Is CPE710 better than CPE610?

For throughput, yes. The CPE710 offers up to 867Mbps 802.11ac wireless while retaining a 23dBi antenna, making it a stronger choice for higher-capacity links.

Is the CPE610 discontinued?

TP-Link’s US product page currently labels it End of Life, but TP-Link states that availability varies by region, and Kenyan retailers still list the model for sale.

What is the TP-Link CPE610 price in Kenya?

Current indexed Kenyan listings range from around KES 8,500 ex VAT at TDK to approximately KES 9,000 and higher on Jumia, depending on seller and promotion.

Buy TP-Link CPE610 in Kenya

The TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE is a strong option for long-distance point-to-point links, CCTV backhaul, farms, schools, warehouses, remote sites and moderate-bandwidth Starlink distribution. Its 23dBi antenna, narrow directional beam, IP65 enclosure, Passive PoE and Pharos management platform make it especially suitable for professional outdoor installations.

For the best results, the installation should be designed around clear line of sight, Fresnel-zone clearance, antenna alignment, mounting height, interference levels and the required throughput. Customers needing more than Fast Ethernet-class performance should compare the CPE610 against the CPE710 or newer Gigabit-capable wireless bridges.

Contact Orbitlink Solutions

Orbitlink Solutions
Address: Lyric House, Kimathi Street, Nairobi
Phone: +254 743 720 551
Email: info@orbitlinksolutions.co.ke
Opening Hours: Monday–Saturday, 9:00 AM–6:00 PM
Availability: Nairobi pickup and nationwide delivery

Contact Orbitlink Solutions for the current TP-Link CPE610 price in Kenya, stock availability, point-to-point wireless equipment, Starlink building-to-building links, CCTV backhaul, Ethernet cabling and professional outdoor wireless installations.
