TP-Link TL-SG1005D 5-Port Gigabit Switch in Kenya

The TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch is a compact unmanaged Ethernet switch designed for homes, small offices, workstations and business networks that need a few extra high-speed wired connections. It provides 5 × 10/100/1000Mbps RJ45 ports, allowing compatible computers, routers, access points, smart TVs, NVRs and other devices to connect at Gigabit Ethernet speeds.

Unlike the TP-Link TL-SF1005D Fast Ethernet model, which is limited to 100Mbps per port, the TL-SG1005D supports up to 1,000Mbps per Ethernet link. This makes it much better suited to modern fibre internet, Starlink, NAS storage, local file transfers and high-speed office networking.

The TL-SG1005D is also plug-and-play, requiring no IP configuration, controller or management software. TP-Link includes Auto-Negotiation, Auto MDI/MDIX, IEEE 802.3x flow control, store-and-forward switching, QoS support on current documentation, Green Ethernet technology and a fanless enclosure.

TP-Link TL-SG1005D Key Features

TP-Link's current documentation lists five Gigabit Ethernet ports, Auto-Negotiation, Auto MDI/MDIX, IEEE 802.3x flow control and 802.1p/DSCP QoS support.

5 Gigabit Ethernet Ports

The TL-SG1005D provides five 10/100/1000Mbps Ethernet interfaces.

Each port automatically detects the Ethernet capability of the connected device and negotiates the appropriate link speed.

This backward compatibility allows older and newer devices to operate on the same network.

10Gbps Switching Capacity

A five-port Gigabit switch needs enough internal bandwidth to handle traffic moving between several ports at once.

Current Kenyan retail specifications for the TL-SG1005D list a 10Gbps switching capacity and 7.44 Mpps packet-forwarding rate.

The 10Gbps figure represents aggregate internal switching capacity, not the speed available to one connected device. Each Ethernet port remains limited to a nominal 1Gbps link.

Plug-and-Play Networking

The TL-SG1005D is an unmanaged switch, so it does not require configuration.

A typical setup is:

Internet → Router → TL-SG1005D → PCs / TV / Printer / NVR

Connect one port to your router or gateway and use the remaining ports for endpoint devices.

There is no switch IP address to configure and no controller is required. TP-Link specifically positions the model as plug-and-play.

Auto-Negotiation

Each Ethernet port automatically detects whether the connected equipment supports 10Mbps, 100Mbps or 1000Mbps.

For example:

100Mbps printer → 100Mbps

Gigabit computer → 1Gbps

Gigabit router → 1Gbps

This allows mixed-generation Ethernet devices to coexist on the same switch.

Auto MDI/MDIX

All five ports support Auto MDI/MDIX, eliminating the traditional need to distinguish between crossover and straight-through Ethernet cables.

This means any normal Ethernet port can typically be used to connect the router, PC, another switch or other network equipment.

IEEE 802.3x Flow Control

The TL-SG1005D supports IEEE 802.3x flow control, helping coordinate data transmission when temporary congestion occurs.

TP-Link also lists backpressure support for half-duplex environments on some official revisions.

802.1p/DSCP QoS

Current TP-Link documentation lists 802.1p/DSCP QoS support for the TL-SG1005D.

This helps the switch recognize priority-marked traffic and can improve handling of latency-sensitive applications where upstream devices also support the appropriate QoS mechanisms.

Because the TL-SG1005D is unmanaged, this is automatic rather than manually configurable like QoS on an Omada managed switch.

Store-and-Forward Switching

The TL-SG1005D uses Store-and-Forward transmission.

This switching method receives an Ethernet frame before forwarding it toward the appropriate destination port, helping provide reliable traffic handling.

Fanless Operation

The TL-SG1005D uses a fanless design, making it suitable for quiet environments.

With no fan, there are also fewer moving components to wear over time.

Compact Desktop Design

TP-Link lists dimensions of approximately 140 × 88 × 23mm on current documentation.

The small size allows it to sit easily next to:

• A fibre router

• A Starlink router or gateway

• A desktop PC

• A network printer

• An NVR

• A smart TV

Some TP-Link revisions are also described as supporting desktop or wall-mount installation.

Green Ethernet Technology

The TL-SG1005D includes TP-Link's energy-efficient Ethernet design.

Older official V7 documentation states potential power savings of up to 85% under specific test conditions, while current documentation simply identifies Green Technology as a supported feature. Actual savings depend on link status, cable length and operating conditions.

TP-Link TL-SG1005D for Home Networks

The TL-SG1005D is ideal when a home router does not provide enough Ethernet ports.

A typical setup can be:

Router → TL-SG1005D → Smart TV + Gaming PC + Desktop + Printer

Gigabit Ethernet makes it significantly more suitable than a 100Mbps Fast Ethernet switch for modern home internet connections and local network transfers.

TP-Link TL-SG1005D for Small Offices

A small office can use the TL-SG1005D to connect several wired devices without installing a larger switch.

Example:

Router → TL-SG1005D → PC + Printer + NAS + Access Point

Its Gigabit interfaces are particularly useful where office users transfer files between computers, access a NAS or use fibre internet above 100Mbps.

TP-Link TL-SG1005D for Fibre Internet

The TL-SG1005D is well suited to modern fibre connections.

Typical topology:

Fibre ONT → Gigabit Router → TL-SG1005D → Ethernet Devices

For internet packages above 1Gbps, a 2.5GbE or faster switch is more appropriate if you want a single client connection to exceed 1Gbps.

TP-Link TL-SG1005D for Starlink

The TL-SG1005D is a practical option for expanding wired connectivity from Starlink where Ethernet connectivity is available.

Typical setup:

Starlink → Router/Gateway → TL-SG1005D → PCs / TVs / Access Points / NVR

Because it uses Gigabit Ethernet, it avoids the basic 100Mbps ceiling imposed by the TL-SF1005D Fast Ethernet switch.

This makes it particularly suitable for modern Starlink installations where available internet speeds may exceed 100Mbps.

TP-Link TL-SG1005D for NAS and File Sharing

Gigabit Ethernet makes the TL-SG1005D useful for local file transfers.

Example:

NAS → TL-SG1005D → Desktop PCs

Compared with Fast Ethernet's nominal 100Mbps link rate, Gigabit Ethernet provides up to ten times the nominal link capacity.

Actual file-transfer speeds depend on disk performance, Ethernet overhead, protocols and the capabilities of the NAS and computer.

TP-Link TL-SG1005D for CCTV

The switch can also connect network surveillance equipment.

For example:

Router → TL-SG1005D → NVR + IP Cameras

The Gigabit architecture provides more bandwidth than Fast Ethernet for CCTV traffic, particularly where several camera streams are involved.

However, the TL-SG1005D does not provide PoE. IP cameras requiring PoE must therefore use separate injectors or a PoE switch.

TP-Link TL-SG1005D for Access Points

The TL-SG1005D can connect wireless access points through Gigabit Ethernet.

Typical setup:

Router → TL-SG1005D → Access Point

This is preferable to a Fast Ethernet switch when connecting modern Wi-Fi 5 or Wi-Fi 6 access points because a 100Mbps wired uplink can become a bottleneck.

If the access point requires PoE, use a suitable injector or choose a PoE-enabled switch.

TL-SG1005D vs TL-SF1005D

The simple model-name distinction is:

SF = Fast Ethernet

SG = Gigabit Ethernet

For most new networks, the TL-SG1005D is the stronger choice.

TL-SG1005D vs TL-SG105

TP-Link also offers the TL-SG105, another five-port Gigabit unmanaged switch.

Both are suitable for simple Gigabit expansion. The final choice often depends on chassis preference, hardware revision, availability and price.

TL-SG1005D vs 8-Port Gigabit Switch

*Assuming one port is used for the upstream router connection.

If you already expect more than four endpoint devices, buying an 8-port Gigabit model can avoid another upgrade later.

Does the TL-SG1005D Support PoE?

No.

The TP-Link TL-SG1005D does not provide Power over Ethernet.

It cannot directly power:

• IP cameras

• Wireless access points

• VoIP phones

• Other PoE devices

For these installations, use PoE injectors or choose a suitable TP-Link PoE/PoE+ switch.

Is the TL-SG1005D Managed?

No.

It is an unmanaged Gigabit switch designed for plug-and-play operation.

It does not provide the configurable VLANs, ACLs, detailed monitoring or centralized Omada management available on managed TP-Link switches.

Does the TL-SG1005D Provide Wi-Fi?

No.

The TL-SG1005D is a wired Ethernet switch.

Connect a wireless router or access point if Wi-Fi coverage is required.

Does the TL-SG1005D Increase Internet Speed?

No.

A switch does not increase the speed supplied by your ISP.

Its benefit is that it allows more Ethernet devices to connect while maintaining Gigabit-capable wired links.

If you are upgrading from a Fast Ethernet switch, however, the TL-SG1005D can remove a previous 100Mbps Ethernet bottleneck.

Does the TL-SG1005D Need a Router?

For normal internet sharing, the switch is typically connected downstream of a router:

Internet → Router → TL-SG1005D → Devices

The router handles DHCP, NAT, routing and firewall functions, while the switch expands the number of Ethernet ports.

Advantages and Limitations

Who Should Buy the TP-Link TL-SG1005D?

The TL-SG1005D is a strong choice for customers who need a few reliable Gigabit Ethernet connections without advanced switch management.

It is particularly suitable for:

• Homes

• Small offices

• Starlink networks

• Fibre internet

• Smart TVs

• Desktop computers

• NAS devices

• NVRs

• Network printers

• Gaming consoles

• Access points

Users who need PoE, VLANs, centralized management or multi-Gigabit speeds should select a more advanced TP-Link switch.

Detailed TP-Link TL-SG1005D Specifications

These values reflect current TP-Link documentation. The support page currently lists numerous hardware revisions through V13.60 and notes that model and hardware-version availability varies by region, so exact specifications should always be checked against the revision supplied.

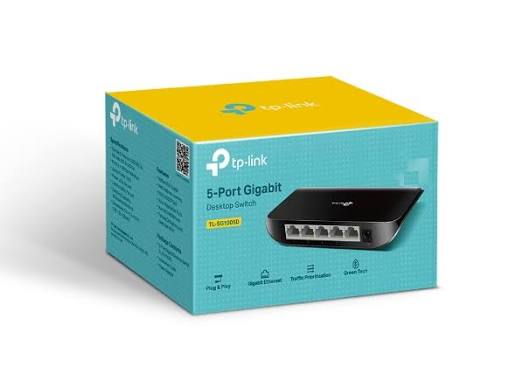

What's Included in the Box?

Current TP-Link documentation lists:

TP-Link TL-SG1005D Price in Kenya

Recent Kenyan listings show the TL-SG1005D at approximately KES 2,196 excluding VAT on one current TDK listing, while TDK's broader switch price list shows the model around KES 2,500.

These are market-reference prices only, not Orbitlink Solutions' fixed selling price.

For the Orbitlink Solutions website, use:

Price: Contact Orbitlink Solutions for the current TP-Link TL-SG1005D 5-Port Gigabit Switch price in Kenya and stock availability.

Why Buy TP-Link TL-SG1005D from Orbitlink Solutions?

Orbitlink Solutions supplies TP-Link routers, switches, access points, gateways and related networking equipment for homes, SMEs and larger installations across Kenya.

Customers can get guidance on choosing between Fast Ethernet, Gigabit, PoE, managed Omada, 2.5G and 10G switches depending on their internet speed, number of wired devices, CCTV requirements, wireless access points and future network expansion.

Orbitlink Solutions can also support complete networking solutions involving Starlink, fibre internet, routers, gateways, Ethernet switches, wireless access points and structured LAN installations.

Watch: TP-Link 5-Port Gigabit Switch

The TP-Link TL-SG1005D is a practical upgrade for users who need to expand a wired network without sacrificing Gigabit Ethernet performance. Its five 10/100/1000Mbps ports automatically adapt to connected equipment, allowing older Fast Ethernet devices and modern Gigabit computers to operate through the same switch.

For homes and small offices, the switch provides an easy way to connect devices such as PCs, NAS storage, smart TVs, printers, NVRs and access points. Its fanless design and compact dimensions also make it easy to position beside a router or other networking equipment without introducing fan noise.

Compared with the Fast Ethernet TL-SF1005D, the TL-SG1005D is significantly better suited to modern fibre and Starlink connections because it supports Gigabit Ethernet rather than being capped at 100Mbps per port. Customers who need PoE, advanced VLAN management or faster-than-Gigabit connectivity should move to a suitable TP-Link PoE, Omada managed or multi-Gigabit switch.

Frequently Asked Questions About TP-Link TL-SG1005D

What is the TP-Link TL-SG1005D?

The TL-SG1005D is a 5-port unmanaged Gigabit Ethernet desktop switch designed to expand a wired network without configuration.

How many ports does the TL-SG1005D have?

It provides five 10/100/1000Mbps RJ45 ports.

Is TL-SG1005D Gigabit?

Yes. Compatible equipment can establish Ethernet links at up to 1Gbps.

Does TL-SG1005D require configuration?

No. It is plug-and-play.

Does TL-SG1005D support Auto MDI/MDIX?

Yes. All five Ethernet ports support Auto MDI/MDIX.

Does TL-SG1005D support QoS?

Current TP-Link documentation lists 802.1p/DSCP QoS.

Is TL-SG1005D fanless?

Yes. TP-Link lists it as fanless.

Does TL-SG1005D support PoE?

No. It does not provide Power over Ethernet.

Can I use TL-SG1005D with fibre internet?

Yes. Its Gigabit Ethernet ports make it suitable for fibre connections up to the Gigabit class, subject to router and device capabilities.

Can I use TL-SG1005D with Starlink?

Yes. It is well suited to distributing a Starlink Ethernet connection to several wired devices.

Can TL-SG1005D handle 500Mbps internet?

Yes, assuming the router, cables and connected device can also support the required throughput.

Can TL-SG1005D handle 1Gbps internet?

It supports Gigabit Ethernet links. Actual application throughput will be somewhat below the nominal 1Gbps link rate because of network overhead.

Is TL-SG1005D suitable for NAS?

Yes. Gigabit Ethernet makes it much more appropriate for NAS and local file sharing than a Fast Ethernet switch.

Is TL-SG1005D suitable for CCTV?

Yes for network traffic. However, it does not supply PoE power.

Can I connect a wireless access point?

Yes. It can provide a Gigabit wired connection to an access point. If the AP requires PoE, use a separate injector or PoE switch.

Does TL-SG1005D have Wi-Fi?

No. It is a wired Ethernet switch.

Does TL-SG1005D support VLANs?

It does not provide configurable VLAN management because it is an unmanaged switch.

What is the difference between TL-SF1005D and TL-SG1005D?

The TL-SF1005D is limited to 100Mbps per port, whereas the TL-SG1005D supports up to 1Gbps per port.

How many usable ports do I get?

The switch has five ports. In a typical setup, one is used to connect to the router, leaving four ports for endpoint devices.

What is the TP-Link TL-SG1005D price in Kenya?

Current Kenyan references place it around KES 2,196–2,500, depending on seller and VAT treatment.

Buy TP-Link 5-Port Gigabit Switch in Kenya

The TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch is an excellent choice for customers who need simple, high-speed wired network expansion. Its five Gigabit Ethernet ports, Auto-Negotiation, Auto MDI/MDIX, fanless design, QoS support and plug-and-play setup make it suitable for homes, small offices, fibre and Starlink installations.

Compared with a Fast Ethernet switch, it provides significantly more capacity for modern internet connections, NAS transfers, NVR traffic and other high-bandwidth applications while remaining compact and easy to deploy.
