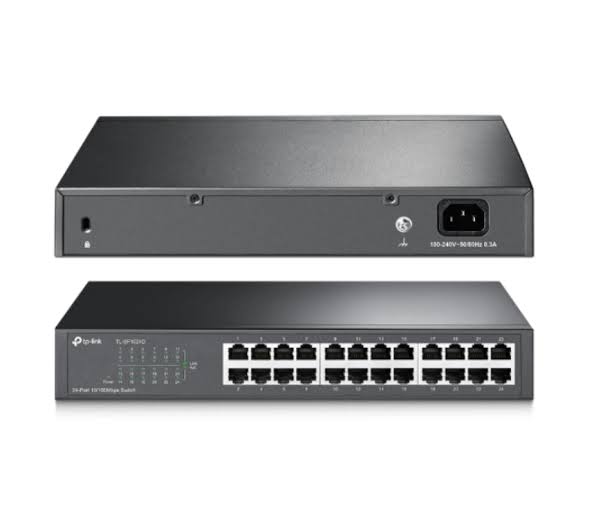

TP-Link TL-SF1024D 24-Port Fast Ethernet Switch in Kenya

The TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch is an unmanaged Fast Ethernet switch designed for offices, schools, retail environments, workgroups and other networks that need a larger number of wired Ethernet connections. It provides 24 × 10/100Mbps RJ45 ports, with Auto-Negotiation and Auto MDI/MDIX supported on every port.

The switch uses a standard 13-inch steel enclosure and can be deployed on a desktop or mounted in a suitable rack environment. TP-Link also includes Store-and-Forward switching, MAC address self-learning, Green Ethernet technology and a fanless cooling design.

The main consideration is speed. The TL-SF1024D is a Fast Ethernet switch, so each individual port supports a nominal maximum of 100Mbps in either direction. It is therefore useful for printers, POS systems, basic office computers and legacy equipment, while modern Starlink, high-speed fibre, NAS storage and larger CCTV deployments generally benefit from Gigabit Ethernet.

TP-Link TL-SF1024D Key Features

TP-Link's current specification sheet lists 4.8Gbps switching capacity, 3.57 Mpps forwarding, an 8K MAC address table, 2KB Jumbo Frames, 3.19W maximum power consumption and dimensions of 294 × 180 × 44mm.

24 Fast Ethernet Ports

The main advantage of the TL-SF1024D is its 24 wired Ethernet ports. This allows significantly more network devices to be connected than with five-port, eight-port or 16-port desktop switches.

Gigabit-capable devices can therefore connect to the switch, but their Ethernet link through the TL-SF1024D remains limited to Fast Ethernet.

Auto-Negotiation

Each Ethernet port automatically determines whether the attached device supports 10Mbps or 100Mbps and establishes the appropriate connection.

For example:

10Mbps device → 10Mbps

100Mbps device → 100Mbps

Gigabit-capable device → 100Mbps through TL-SF1024D

This makes the switch useful where older Fast Ethernet devices must coexist with newer equipment.

Auto MDI/MDIX

All 24 Ethernet ports support Auto MDI/MDIX, which removes the traditional need to distinguish between crossover and straight-through Ethernet cables for ordinary connections.

There is also no dedicated uplink port required for normal operation.

Any appropriate port can be used to connect the switch upstream to a router or another switch.

4.8Gbps Switching Capacity

The TP-Link TL-SF1024D has a documented 4.8Gbps switching capacity.

This figure represents the total internal switching fabric capacity and should not be interpreted as a 4.8Gbps internet connection.

The figure corresponds to the theoretical aggregate full-duplex capacity of 24 Fast Ethernet interfaces:

24 ports × 100Mbps × 2 directions = 4.8Gbps

Each individual device remains connected at a maximum nominal Ethernet rate of 100Mbps in either direction.

3.57 Mpps Packet Forwarding Rate

TP-Link specifies a 3.57 million packets per second forwarding rate for the TL-SF1024D.

This indicates the switch's ability to process Ethernet packets across its multiple interfaces.

For typical office, POS, printer and workgroup traffic, this provides suitable internal switching performance within the Fast Ethernet standard.

8K MAC Address Table

The TL-SF1024D supports an 8K MAC address table.

The switch automatically learns which network devices are attached to particular ports and stores their MAC addresses.

This MAC address learning allows Ethernet frames to be forwarded to the correct ports rather than unnecessarily transmitting every frame across the entire network.

Because the process is automatic, users do not need to configure the MAC table manually.

Store-and-Forward Switching

TP-Link specifies Store-and-Forward as the forwarding method used by the TL-SF1024D.

Under this method, an Ethernet frame is received before being forwarded toward its destination.

The design helps maintain reliable packet handling while allowing the switch to remain completely unmanaged and plug-and-play.

IEEE 802.3x Flow Control

The TL-SF1024D supports IEEE 802.3x flow control.

Flow control helps manage temporary network congestion when a receiving device cannot process incoming traffic quickly enough.

This is useful in networks containing equipment with different performance levels, such as:

• Computers

• POS terminals

• Printers

• NVRs

• Legacy Ethernet hardware

2KB Jumbo Frame Support

TP-Link's current specification lists 2KB Jumbo Frame support for the TL-SF1024D.

Jumbo Frames can improve efficiency in some Ethernet applications by reducing the number of frames required to carry data.

However, the switch's 100Mbps interface speed remains the more significant limitation for large file transfers.

For NAS, server backups or high-volume LAN transfers, Gigabit Ethernet is preferable.

Fanless Operation

The TL-SF1024D uses a fanless design.

This allows quiet operation while reducing the number of mechanical components inside the switch.

Proper ventilation should still be provided around the switch, particularly when mounted alongside other networking equipment.

Steel Desktop and Rackmount Design

Unlike smaller plastic desktop switches, the TL-SF1024D uses a steel enclosure. TP-Link describes it as a standard 13-inch desktop/rackmount switch.

Its dimensions are approximately:

294 × 180 × 44mm

This makes the TL-SF1024D suitable for structured networking environments where equipment is installed together in a communications area or cabinet.

The rackmount design is particularly useful for schools, offices, retail networks and workgroups where multiple Ethernet cables need to terminate in one central location.

Internal AC Power Supply

The TL-SF1024D uses 100–240VAC, 50/60Hz power input rather than the small external DC adapter commonly found on five-port and eight-port desktop switches.

This makes installation cleaner in a rack or communications cabinet because the power cable connects directly to the switch.

The documented maximum power consumption is approximately 3.19W at 220V/50Hz, with maximum heat dissipation of around 10.88 BTU/h.

Green Ethernet Technology

The TL-SF1024D incorporates Green Ethernet technology designed to reduce unnecessary energy consumption.

Earlier TP-Link documentation describes potential savings of up to 75% under specific test conditions compared with conventional TP-Link switches. Actual savings vary with link status, connected devices, cable conditions and usage.

For a switch designed to remain powered continuously, energy-efficient operation can help reduce ongoing power use.

Plug-and-Play Installation

The TL-SF1024D is an unmanaged switch.

There is no software configuration, controller or switch management interface required for ordinary operation.

A typical network topology is:

Internet → Router → TL-SF1024D → Wired Devices

For example:

Router → TL-SF1024D → PCs + Printers + POS Terminals + NVR + Other Equipment

The router handles:

DHCP → NAT → Firewall → Internet Routing

The TL-SF1024D handles:

Ethernet switching → Device connectivity → LAN expansion

This separation is important because an Ethernet switch does not replace a router.

TP-Link TL-SF1024D for Offices

The 24-port design makes the TL-SF1024D useful in offices where many workstations and peripheral devices require wired connectivity.

A typical deployment could include:

Router → TL-SF1024D → PCs + Printers + POS + Office Equipment

For ordinary tasks such as web browsing, email, printing and basic cloud applications, Fast Ethernet can still provide adequate performance.

However, businesses frequently transferring large files or using internet speeds above 100Mbps should generally move to Gigabit Ethernet.

TP-Link TL-SF1024D for Schools

The switch can provide wired connectivity for:

• Computer laboratories

• Administrative offices

• Libraries

• Staff rooms

• Reception areas

• Basic classroom networks

A typical school deployment might be:

Router → TL-SF1024D → 20+ Computers + Printers

The 24-port layout provides enough physical interfaces for a modest computer lab or administrative network.

For new computer laboratories using fast internet, cloud applications or large local file transfers, a 24-port Gigabit switch is a more future-ready choice.

TP-Link TL-SF1024D for POS Networks

The TL-SF1024D can be particularly useful in larger retail networks.

Typical topology:

Router → TL-SF1024D → POS Terminals + Printers + Back-Office PCs

Suitable locations include:

• Supermarkets

• Pharmacies

• Hotels

• Restaurants

• Retail stores

• Warehouses

• Multi-counter shops

POS transactions normally require relatively little bandwidth, so the 100Mbps interface limit is less important than it would be for high-volume storage or multimedia traffic.

TP-Link TL-SF1024D for CCTV

The TL-SF1024D can transport Ethernet traffic for basic CCTV systems.

Example:

Router → TL-SF1024D → NVR + IP Cameras

However, the switch has two major considerations for CCTV.

First, it does not provide PoE, so PoE cameras require separate injectors, power supplies or another PoE switch.

Second, high-resolution cameras can collectively generate substantial network traffic. A Gigabit PoE switch is therefore generally preferred for larger modern CCTV installations.

TP-Link TL-SF1024D for Fibre Internet

The switch can be placed downstream of a fibre router:

Fibre ONT → Router → TL-SF1024D → Network Devices

The Fast Ethernet interface becomes the main limitation.

Actual application throughput over a 100Mbps Ethernet link will normally be below the nominal line rate because of protocol overhead.

TP-Link TL-SF1024D for Starlink

The TL-SF1024D can technically distribute a Starlink Ethernet connection across multiple wired devices.

Typical topology:

Starlink → Router/Gateway → TL-SF1024D → Ethernet Devices

However, Fast Ethernet can become a bottleneck when Starlink delivers more than 100Mbps.

For a modern Starlink office network, Orbitlink Solutions should generally recommend a 24-port Gigabit switch instead.

The TL-SF1024D makes more sense when the connected endpoints consist largely of:

• POS terminals

• Printers

• Legacy computers

• Other low-bandwidth devices

TP-Link TL-SF1024D vs TL-SF1016D

TP-Link's current specification sheet lists both models with the same 294 × 180 × 44mm chassis dimensions, while the TL-SF1024D adds eight additional Ethernet ports.

TP-Link TL-SF1024D vs 24-Port Gigabit Switch

For most new business networks, Gigabit Ethernet is the more future-ready option.

The TL-SF1024D remains attractive where port count is important but individual connected devices have modest bandwidth requirements.

Does TP-Link TL-SF1024D Support PoE?

No.

The TL-SF1024D does not provide Power over Ethernet.

It cannot directly power devices such as:

• IP cameras

• Wi-Fi access points

• VoIP phones

• Other PoE-powered devices

If PoE is required, choose a suitable TP-Link PoE switch or use compatible PoE injectors.

Is TP-Link TL-SF1024D Managed?

No.

The TL-SF1024D is an unmanaged switch.

It does not provide user-configurable:

• VLANs

• ACLs

• Port monitoring

• Link aggregation

• Omada controller management

• Layer 3 routing

Its strength is simplicity: connect the cables, supply power and the switch begins operating.

Does TL-SF1024D Provide Wi-Fi?

No.

The TL-SF1024D is a wired Ethernet switch.

Wi-Fi must be provided separately by a:

• Wireless router

• Access point

• Mesh Wi-Fi system

Does TL-SF1024D Increase Internet Speed?

No.

A switch does not increase the internet speed supplied by the ISP.

It simply allows more wired devices to connect to the local network.

Because the TL-SF1024D uses Fast Ethernet, it can restrict a faster internet connection to the 100Mbps class for devices connected through it.

Does TL-SF1024D Replace a Router?

No.

The usual installation is:

Internet → Router → TL-SF1024D → Devices

The router performs routing, firewalling, DHCP and NAT.

The TL-SF1024D expands Ethernet connectivity.

Advantages and Limitations

Who Should Buy the TP-Link TL-SF1024D?

The TL-SF1024D is best suited to organisations that require many affordable Ethernet ports but do not need Gigabit performance, PoE or managed-network features.

Typical applications include:

• Office workstations

• Schools and computer labs

• POS networks

• Retail stores

• Network printers

• Legacy computers

• Reception networks

• Basic CCTV traffic

• Warehouses

• Low-bandwidth business endpoints

For Starlink, fibre above 100Mbps, NAS storage, modern high-speed office networks or high-resolution CCTV, a 24-port Gigabit or Gigabit PoE switch is generally preferable.

Detailed TP-Link TL-SF1024D Specifications

These specifications come from TP-Link's official TL-SF1024D documentation. TP-Link's current support site lists hardware revisions V2, V3 and V4 and notes that hardware-version availability varies by region, so exact secondary specifications should be confirmed against the unit supplied.

What's Included in the Box?

A typical TL-SF1024D package includes:

Exact packaging can differ by market and hardware revision, so project buyers should confirm supplied accessories before installation.

TP-Link TL-SF1024D Price in Kenya

A current Kenyan listing from TDK Networks shows the TP-Link TL-SF1024D at approximately KES 7,320 excluding VAT, discounted from KES 8,000 at the time of checking.

These are third-party market references only and should not be presented as Orbitlink Solutions' fixed price.

For the Orbitlink website, use:

Price: Contact Orbitlink Solutions for the current TP-Link TL-SF1024D price in Kenya and stock availability.

Why Buy TP-Link TL-SF1024D from Orbitlink Solutions?

Orbitlink Solutions supplies TP-Link switches, routers, gateways, access points and related networking equipment for businesses, schools, homes and larger projects across Kenya.

Customers can get assistance choosing between Fast Ethernet, Gigabit, PoE, Omada managed, 2.5G and 10G switches depending on internet speed, connected devices, CCTV requirements, access points, servers and expected network growth.

For larger office, school or commercial installations, customers can also send a BOQ to Orbitlink Solutions for equipment recommendations and project pricing.

Watch the TP-Link TL-SF1024D Video

The TP-Link TL-SF1024D is designed for environments where a large number of basic wired devices need to connect through one central Ethernet switch. Its 24 Fast Ethernet ports provide significantly greater physical expansion than eight-port or 16-port switches while retaining the simplicity of an unmanaged network device.

Its steel chassis, desktop/rackmount installation, integrated AC power input and fanless operation also make it more appropriate for structured business networking than smaller plastic desktop switches. With an 8K MAC address table, 4.8Gbps switching capacity and 3.57 Mpps forwarding rate, the TL-SF1024D is designed to handle multiple simultaneous Fast Ethernet connections efficiently.

The key purchasing consideration is the 100Mbps port limitation. This is usually sufficient for POS terminals, printers and basic office endpoints, but can restrict modern fibre, Starlink, NAS transfers and other bandwidth-intensive applications. For a new business network expected to grow, Orbitlink Solutions should generally recommend the Gigabit equivalent where budget allows.

Frequently Asked Questions About TP-Link TL-SF1024D

What is the TP-Link TL-SF1024D?

The TL-SF1024D is a 24-port unmanaged 10/100Mbps Fast Ethernet desktop/rackmount switch designed for business and workgroup network expansion.

How many ports does TL-SF1024D have?

It provides 24 × 10/100Mbps RJ45 ports with Auto-Negotiation and Auto MDI/MDIX.

Is TL-SF1024D Gigabit?

No. It is a Fast Ethernet switch with a nominal maximum rate of 100Mbps per port in either direction.

What is its switching capacity?

The TL-SF1024D has a documented 4.8Gbps switching capacity.

What is its packet forwarding rate?

TP-Link specifies 3.57 Mpps.

What is the MAC address table size?

The switch supports an 8K MAC address table.

Does TL-SF1024D support Jumbo Frames?

Yes. Current official documentation lists 2KB Jumbo Frames.

Does TL-SF1024D require configuration?

No. It is an unmanaged plug-and-play switch.

Does it support Auto MDI/MDIX?

Yes. All 24 Ethernet ports support Auto MDI/MDIX.

Is TL-SF1024D fanless?

Yes. TP-Link specifies a fanless cooling design.

Can TL-SF1024D be rack mounted?

Yes. It is designed for desktop or rackmount installation in a standard 13-inch steel enclosure.

Does TL-SF1024D support PoE?

No. It does not supply Power over Ethernet.

Can I use it for IP cameras?

Yes for network traffic, but PoE cameras need separate power or a PoE switch.

Can TL-SF1024D work with fibre internet?

Yes, but each Ethernet link through the switch is limited to the 100Mbps class.

Can TL-SF1024D work with Starlink?

Yes, but it may limit throughput whenever the Starlink connection exceeds 100Mbps.

Does TL-SF1024D provide Wi-Fi?

No. It is a wired Ethernet switch.

Is TL-SF1024D managed?

No. It is unmanaged.

Does it support configurable VLANs?

No. For VLAN configuration, consider an Easy Smart, Easy Managed, Smart or Omada managed TP-Link switch.

How many endpoint devices can I connect?

There are 24 ports. If one port is used for the router uplink, 23 ports remain for endpoint devices.

Is TL-SF1024D suitable for POS systems?

Yes. POS traffic normally requires relatively little bandwidth, making the TL-SF1024D suitable for many larger retail networks.

What is the difference between TL-SF1024D and a 24-port Gigabit switch?

The TL-SF1024D is limited to 100Mbps per port, while a Gigabit alternative supports up to 1,000Mbps per port.

What is the TP-Link TL-SF1024D price in Kenya?

A current third-party Kenyan listing shows approximately KES 7,320 excluding VAT. Contact Orbitlink Solutions for current stock and exact pricing.

Buy TP-Link TL-SF1024D in Kenya

The TP-Link TL-SF1024D 24-Port Fast Ethernet Desktop/Rackmount Switch is a practical solution for organisations that need many basic wired Ethernet connections without managed-switch complexity. Its 24 Fast Ethernet ports, 4.8Gbps switching capacity, 3.57 Mpps forwarding, 8K MAC table, Auto-Negotiation, Auto MDI/MDIX, fanless operation and steel rackmount enclosure make it suitable for offices, schools, POS networks and legacy business environments.

For customers running high-speed fibre, Starlink, NAS storage, high-resolution CCTV or modern wireless access points, Orbitlink Solutions can also supply suitable Gigabit, PoE and Omada managed TP-Link switches.

Contact Orbitlink Solutions

Orbitlink Solutions
Address: Lyric House, Kimathi Street, Nairobi
Phone: +254 743 720 551
Email: info@orbitlinksolutions.co.ke
Opening Hours: Monday–Saturday, 9:00 AM–6:00 PM
Availability: Nairobi pickup and nationwide delivery

Contact Orbitlink Solutions for the current TP-Link TL-SF1024D price in Kenya, TP-Link Fast Ethernet switches, Gigabit switches, PoE switches, Omada managed switches, routers, access points and complete fibre or Starlink networking solutions.
