TP-Link TL-SF1005D 5-Port Fast Ethernet Switch in Kenya

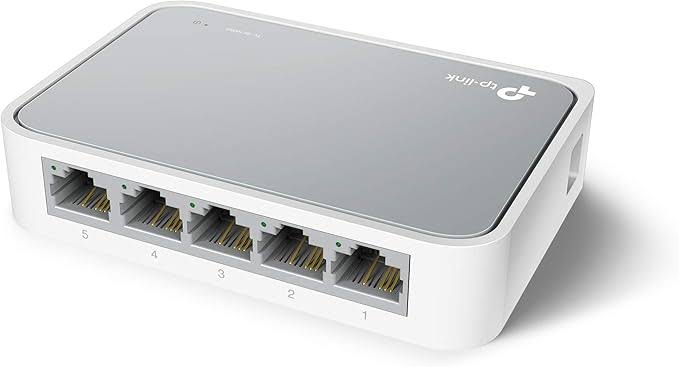

The TP-Link TL-SF1005D 5-Port 10/100Mbps Desktop Switch is a compact unmanaged network switch designed to expand a small wired network quickly and affordably. It provides five 10/100Mbps Auto-Negotiation RJ45 ports, with Auto MDI/MDIX supported across all ports, making installation straightforward without worrying about crossover cables or a dedicated uplink port.

It is particularly suitable for homes, small offices, shops, POS installations, network printers and other devices that do not require Gigabit Ethernet performance. The TL-SF1005D requires no switch configuration, uses a fanless desktop design and supports IEEE 802.3x flow control for reliable data transmission.

The main consideration is speed. The TL-SF1005D is a Fast Ethernet switch, so each port operates at a nominal maximum of 100Mbps. Customers using high-speed fibre, Starlink, NAS storage or modern high-bandwidth equipment should consider a Gigabit model such as the TP-Link TL-SG1005D instead.

TP-Link TL-SF1005D Key Features

These specifications reflect TP-Link's current V15 product information. Hardware revisions differ, and TP-Link currently lists multiple TL-SF1005D versions including V18, V16.x, V15, V14, V13 and earlier generations. Regional hardware availability can vary.

5-Port 10/100Mbps Fast Ethernet Connectivity

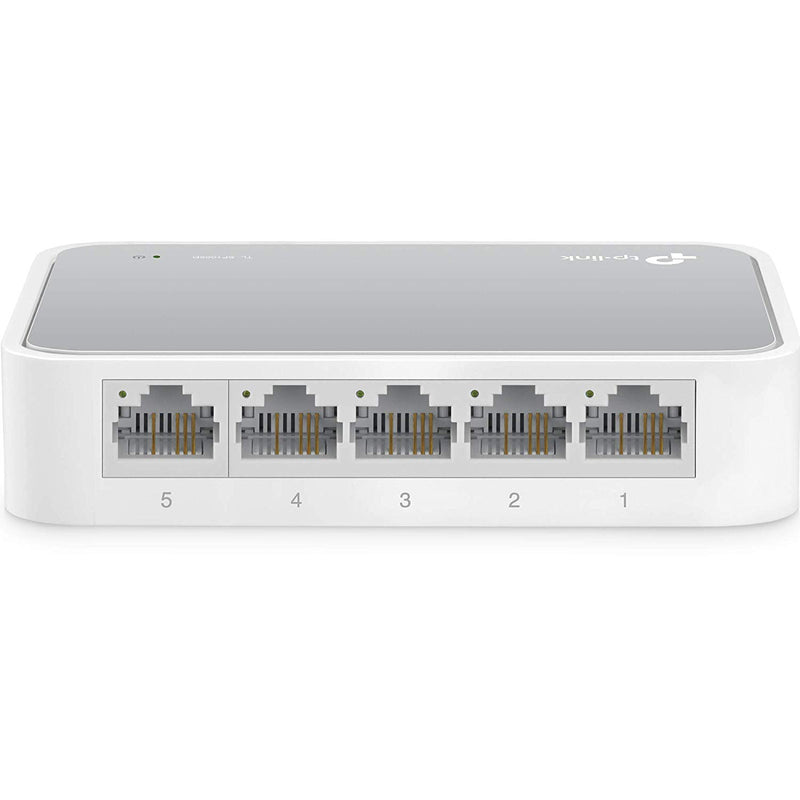

The TP-Link TL-SF1005D provides five Fast Ethernet RJ45 ports.

Each port automatically detects whether the connected device operates at 10Mbps or 100Mbps and negotiates the appropriate Ethernet connection.

A Gigabit-capable device can therefore connect normally, but the switch itself cannot establish a 1Gbps Ethernet link.

Auto-Negotiation

Every TL-SF1005D Ethernet port automatically detects the capabilities of the connected equipment.

For example:

10Mbps device → 10Mbps

100Mbps device → 100Mbps

1Gbps-capable device → 100Mbps maximum through this switch

This makes the switch convenient for networks containing both older and newer Ethernet devices.

Auto MDI/MDIX

All five ports support Auto MDI/MDIX. This eliminates the traditional requirement to choose between straight-through and crossover Ethernet cables for normal network connections.

Any port can typically be used to connect:

• A router

• Desktop computer

• Printer

• Another switch

• NVR

• POS terminal

• Smart TV

There is no dedicated uplink port required.

Plug-and-Play Installation

The TL-SF1005D is an unmanaged switch, so no controller, IP configuration or management interface is required.

A typical installation is:

Internet → Router → TL-SF1005D → Ethernet Devices

For example:

Router → TL-SF1005D → PC + Printer + POS + Smart TV

TP-Link specifically describes the switch as plug-and-play with no configuration required.

This simplicity makes it particularly suitable where users need additional Ethernet ports but do not require VLAN configuration, network monitoring or managed-switch functionality.

Non-Blocking Switching Architecture

TP-Link states that the TL-SF1005D uses a non-blocking switching architecture that forwards and filters packets at full wire speed within the capabilities of its Fast Ethernet interfaces.

This means the switch is designed to efficiently move traffic between several connected ports simultaneously.

The primary performance limit remains the 100Mbps link speed available on each individual port.

Store-and-Forward Switching

The TL-SF1005D uses Store-and-Forward transmission.

The switch receives an Ethernet frame before forwarding it toward the destination port.

This method is widely used in Ethernet switches and helps maintain reliable packet handling without requiring user configuration.

IEEE 802.3x Flow Control

The TL-SF1005D supports IEEE 802.3x flow control for Full Duplex connections and back pressure for Half Duplex traffic.

Flow control helps reduce congestion when one connected network device temporarily receives data faster than it can process it.

This can improve reliability in small Ethernet networks containing devices with different performance capabilities.

Up to 200Mbps Full-Duplex Data Rate Explained

Some TP-Link documentation describes the TL-SF1005D as supporting up to 200Mbps in Full Duplex mode. This does not mean that one device can download at 200Mbps.

It refers to the theoretical combined bidirectional capacity of a 100Mbps Ethernet link:

100Mbps transmit + 100Mbps receive = 200Mbps aggregate full-duplex bandwidth.

The actual nominal link speed in either direction remains 100Mbps.

This distinction is important when comparing the TL-SF1005D with a Gigabit switch.

Jumbo Frame Support

The current TP-Link V15 product page lists 2K Jumbo Frame support.

Interestingly, some earlier hardware revisions such as V13 list larger Jumbo Frame support, demonstrating why exact specifications can differ between revisions.

For most buyers, however, the more important limitation is still the 100Mbps Ethernet interface.

Customers purchasing for a project should confirm the hardware version being supplied if a particular secondary feature is critical.

Fanless Quiet Operation

The TP-Link TL-SF1005D has a fanless design.

This makes it suitable for quiet indoor environments such as:

The lack of a cooling fan also means there are fewer moving parts inside the switch.

Compact Desktop Design

The current V15 specification lists dimensions of only 104 × 70 × 22mm.

This compact size allows the TL-SF1005D to fit easily:

• Beside a router

• Behind a television

• On an office desk

• Beside a network printer

• At a POS counter

• Inside a small networking area

It is an attractive option where only a few extra Ethernet connections are needed and a larger 8-port, 16-port or rackmount switch would be unnecessary.

Low Power Consumption

TP-Link lists maximum power consumption of approximately 1.9W for the current V15 hardware.

This makes the switch economical for continuous operation.

TP-Link also incorporates its Green Ethernet technology, with the current product page stating potential savings of up to 68% under specified operating conditions. Actual savings depend on link activity, cable characteristics and network use.

TP-Link TL-SF1005D for Home Networks

The TL-SF1005D is useful when a home router does not provide enough Ethernet ports.

A typical arrangement could be:

Router → TL-SF1005D → Smart TV + Printer + Desktop + Decoder

The switch allows several wired devices to share the same router connection without replacing the router.

For homes with fibre or Starlink connections above 100Mbps, however, a Gigabit switch is generally a better investment.

TP-Link TL-SF1005D for Small Offices

The switch is also suitable for a small office containing basic Ethernet equipment.

Example:

Router → TL-SF1005D → PCs + Printer + POS

For activities such as:

• Web browsing

• Email

• Printing

• POS transactions

• Basic cloud applications

Fast Ethernet may be sufficient.

Businesses transferring large files, using NAS storage or subscribing to internet speeds above 100Mbps should generally use Gigabit Ethernet instead.

TP-Link TL-SF1005D for POS Systems

The TL-SF1005D is particularly practical for POS networking.

POS terminals usually transfer relatively small amounts of transaction data, so Fast Ethernet provides much more bandwidth than a typical POS application requires.

A retail setup could be:

Router → TL-SF1005D → POS + Receipt Printer + Office PC

This makes the switch suitable for:

• Shops

• Pharmacies

• Restaurants

• Salons

• Small supermarkets

• Reception desks

TP-Link TL-SF1005D for Network Printers

Network printers usually require comparatively little bandwidth.

A small business can therefore use the TL-SF1005D to connect printers and PCs through a simple wired LAN.

Example:

Router → TL-SF1005D → Printer + PCs

For normal office printing, the 100Mbps Ethernet limit is rarely a major concern.

TP-Link TL-SF1005D for CCTV

The switch can carry basic IP CCTV network traffic where cameras and other equipment receive power separately.

Example:

Router → TL-SF1005D → NVR + IP Camera

However, the TL-SF1005D does not provide PoE.

PoE cameras require:

• Separate power supplies

• Compatible PoE injectors

• Or a PoE-enabled Ethernet switch

For several high-resolution cameras, a Gigabit PoE switch is normally a better option.

TP-Link TL-SF1005D for Fibre Internet

The TL-SF1005D can be connected downstream of a fibre router.

Fibre ONT → Router → TL-SF1005D → Devices

However, the switch can become a bottleneck if the internet service is faster than 100Mbps.

Real-world application throughput on a 100Mbps Ethernet link will normally be somewhat below the theoretical 100Mbps link rate because of protocol overhead.

TP-Link TL-SF1005D for Starlink

The TL-SF1005D can technically work downstream of a Starlink router or gateway where Ethernet connectivity is available.

Typical arrangement:

Starlink → Router/Gateway → TL-SF1005D → Ethernet Devices

However, a Fast Ethernet switch can limit throughput when Starlink delivers speeds above the 100Mbps class.

For most modern Starlink installations, a Gigabit switch such as the TP-Link TL-SG1005D or TL-SG1008D is more appropriate.

The TL-SF1005D is better suited to a separate low-bandwidth segment containing devices such as printers, POS terminals or older equipment.

TP-Link TL-SF1005D vs TL-SG1005D

One of the most important comparisons for buyers is between the Fast Ethernet TL-SF1005D and Gigabit TL-SG1005D.

The simplest naming distinction is:

SF = Fast Ethernet

SG = Gigabit Ethernet

For most new installations, the Gigabit model provides substantially more future capacity.

TP-Link TL-SF1005D vs TL-SF1008D

*Assuming one Ethernet port is used to connect to the router.

If you already expect to connect more than four endpoint devices, the 8-port model provides better expansion room.

Fast Ethernet vs Gigabit Ethernet

Fast Ethernet remains useful for low-bandwidth devices, but Gigabit Ethernet is normally preferable for a new network.

Does the TP-Link TL-SF1005D Support PoE?

No.

The TL-SF1005D does not provide Power over Ethernet.

It cannot directly power devices such as:

• IP cameras

• Wireless access points

• VoIP phones

If PoE is required, use suitable PoE injectors or choose a TP-Link PoE switch.

Is the TL-SF1005D Managed?

No.

It is an unmanaged switch.

There is no configurable:

• VLAN interface

• ACL system

• Port management

• Omada controller integration

• Layer 3 routing

Its main advantage is simplicity.

Connect the cables and the switch starts forwarding network traffic automatically.

Does the TL-SF1005D Provide Wi-Fi?

No.

The TL-SF1005D only provides wired Ethernet connectivity.

Wi-Fi must be provided by a separate:

• Router

• Wireless access point

• Mesh system

Does the TL-SF1005D Increase Internet Speed?

No.

A switch does not increase the speed supplied by your ISP.

Its function is to allow additional Ethernet devices to connect to the network.

Because the TL-SF1005D is limited to Fast Ethernet, it can actually become a bottleneck when the available internet speed exceeds approximately the 100Mbps class.

Does the TL-SF1005D Need a Router?

For normal internet sharing, yes, it is typically connected behind a router.

Internet → Router → TL-SF1005D → Devices

The router normally handles:

• DHCP

• NAT

• Firewall functions

• Internet routing

The TL-SF1005D simply expands the wired LAN.

Advantages and Limitations

Who Should Buy the TP-Link TL-SF1005D?

The TL-SF1005D is most suitable for customers who need simple, affordable Ethernet expansion for lower-bandwidth devices.

Ideal applications include:

• POS terminals

• Network printers

• Older desktop computers

• Smart TVs

• Basic CCTV systems

• Reception networks

• Small home networks

• Legacy Ethernet devices

• Light office networking

Customers building a new network around Starlink, high-speed fibre, NAS storage, high-resolution CCTV or modern access points should normally choose Gigabit Ethernet instead.

Detailed TP-Link TL-SF1005D Specifications

These figures correspond to TP-Link's V15 product information. Exact specifications can vary between hardware revisions, so project buyers should confirm the version being supplied.

What's Included in the Box?

TP-Link lists the following package contents for the current TL-SF1005D:

TP-Link TL-SF1005D Price in Kenya

The TP-Link TL-SF1005D price in Kenya can vary according to supplier, hardware revision, VAT treatment and stock availability.

For the Orbitlink Solutions website, the safest current pricing statement is:

Price: Contact Orbitlink Solutions for the current TP-Link TL-SF1005D price in Kenya and stock availability.

This avoids presenting an outdated or mismatched third-party listing as Orbitlink Solutions' own selling price.

Why Buy TP-Link TL-SF1005D from Orbitlink Solutions?

Orbitlink Solutions supplies TP-Link networking equipment for homes, SMEs and larger network installations across Kenya.

Customers can get assistance selecting between Fast Ethernet, Gigabit, PoE, Omada managed, 2.5G and 10G switches depending on internet speed, device count, CCTV requirements, access points and future network expansion.

For larger projects, customers can also send their BOQ to Orbitlink Solutions for equipment selection and project pricing.

Watch the TP-Link TL-SF1005D Video

The TP-Link TL-SF1005D focuses on simplicity. Five Fast Ethernet ports provide an inexpensive way to extend the number of wired connections available from a router, while Auto-Negotiation and Auto MDI/MDIX make installation straightforward. There is no switch operating system or controller to configure, making it suitable for users who simply need additional Ethernet ports.

Its compact size, fanless design and approximately 1.9W maximum power consumption on the current V15 specification also make the TL-SF1005D suitable for continuous use in small indoor networks. It can sit beside a router, POS terminal, printer or entertainment system without taking up significant space or producing cooling-fan noise.

The main buying decision comes down to bandwidth. The TL-SF1005D remains useful for printers, POS terminals and other modest network applications, but its 100Mbps Ethernet interfaces can restrict faster internet and LAN connections. For high-speed fibre, Starlink or modern office networks, Orbitlink Solutions should generally recommend a Gigabit model unless the installation specifically requires only Fast Ethernet.

Frequently Asked Questions About TP-Link TL-SF1005D

What is the TP-Link TL-SF1005D?

The TL-SF1005D is a 5-port unmanaged 10/100Mbps Fast Ethernet desktop switch designed to expand a small wired LAN.

How many ports does the TL-SF1005D have?

It has five 10/100Mbps RJ45 Ethernet ports.

Is the TL-SF1005D Gigabit?

No. It is a Fast Ethernet switch and supports up to 100Mbps nominally per Ethernet link.

Does TL-SF1005D require configuration?

No. It is a plug-and-play unmanaged switch.

Does TL-SF1005D support Auto MDI/MDIX?

Yes. All five ports support Auto MDI/MDIX.

Does it support Auto-Negotiation?

Yes. Ports automatically negotiate 10Mbps or 100Mbps according to the connected device.

Is the TL-SF1005D fanless?

Yes. The current specification lists a fanless design.

What are its dimensions?

Current V15 dimensions are approximately 104 × 70 × 22mm.

How much power does it consume?

The current V15 specification lists maximum power consumption of 1.9W.

Does the TL-SF1005D support PoE?

No. It does not supply power over Ethernet.

Can I connect an IP camera?

Yes for network data, but the camera will require a separate power supply or PoE solution if it is PoE-powered.

Can I use TL-SF1005D with fibre internet?

Yes, but traffic through each switch link is limited to the Fast Ethernet class.

Can I use TL-SF1005D with Starlink?

Yes, but it can bottleneck the connection if available Starlink throughput exceeds 100Mbps.

Does TL-SF1005D provide Wi-Fi?

No. It is a wired Ethernet switch.

Does TL-SF1005D support VLANs?

It does not provide configurable VLAN management because it is an unmanaged switch.

Can I connect another switch to TL-SF1005D?

Yes, although the connection between the two switches will still be limited to 100Mbps through the TL-SF1005D.

How many devices can I connect?

There are five Ethernet ports. If one port is used as the connection to the router, four ports remain for endpoint devices.

Is TL-SF1005D good for POS systems?

Yes. Most POS transaction traffic requires relatively little bandwidth, making Fast Ethernet suitable for many POS networks.

Is TL-SF1005D suitable for NAS storage?

It can work, but Gigabit Ethernet is strongly preferable because NAS file transfers can easily be limited by a 100Mbps connection.

What is the difference between TL-SF1005D and TL-SG1005D?

The TL-SF1005D supports Fast Ethernet up to 100Mbps per port, while the TL-SG1005D supports Gigabit Ethernet up to 1Gbps.

What is the TP-Link TL-SF1005D price in Kenya?

Pricing varies depending on supplier, VAT treatment, hardware revision and availability. Contact Orbitlink Solutions for the current price and stock.

Buy TP-Link TL-SF1005D in Kenya

The TP-Link TL-SF1005D 5-Port Fast Ethernet Desktop Switch is an affordable solution for adding wired network connections to small homes, offices, retail environments and POS installations. Its five 10/100Mbps ports, Auto-Negotiation, Auto MDI/MDIX, IEEE 802.3x flow control, fanless operation and plug-and-play design make it simple to deploy and maintain.

For basic printers, POS systems and legacy Ethernet equipment, the TL-SF1005D provides practical network expansion. Customers using faster fibre, Starlink, NAS storage or modern high-performance networks can also choose from Orbitlink Solutions' Gigabit, PoE and managed TP-Link switch options.

Contact Orbitlink Solutions

Orbitlink Solutions
Address: Lyric House, Kimathi Street, Nairobi
Phone: +254 743 720 551
Email: info@orbitlinksolutions.co.ke
Opening Hours: Monday–Saturday, 9:00 AM–6:00 PM
Availability: Nairobi pickup and nationwide delivery

Contact Orbitlink Solutions for the current TP-Link TL-SF1005D price in Kenya, TP-Link Fast Ethernet switches, Gigabit switches, PoE switches, Omada managed switches, routers, access points and complete fibre or Starlink networking solutions.
